About Electromagnetic Stirrers

An electromagnetic stirrer is a non-contact stirring equipment for melted materials.

Electromagnetic stirrer has solved the weaknesses of burner reactors.

Energy saving
Electromagnetic stirrers reduce energy loss by 7~5%.
Improved quality
Stirring makes component homogenize and improve quality.
Melt down small metals
Stirring mixes up small metals. So they can be easily melted.
Automatization of removing slag
Adopting an electromagnetic stirrer makes the furnace deep. By controling stream of melted metals,we can gather slag in one place. It makes possible to remove it automatically.

Features of Taichiku's Electromagnetic Stirrers

Maintenance free
Our electromagnetic stirrers are very strong enough for continuously long time use.
Easy to installation
Space-saving
Easy to operate
Permanent magnet is not used.
Permanent magnet needs maintenance and causes bad influences on surroundings, including human body.

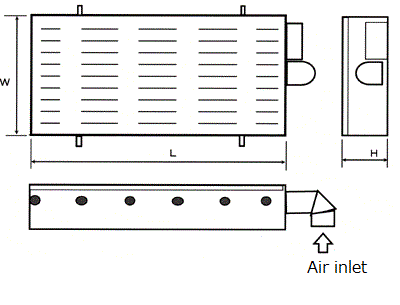

Specifications of Electromagnetic Stirrers

Type of ModelLMA2000/40LMA2900/80LMA2900/100
Main body
and
power supply
of a stirrer
L(mm)200029002900
W(mm)120012501270
H(mm)400470470
Weight(ton)2.55.56
Capacity of Stirrer(kVA)4080100
Frequency(Hz)0.5~3.0
Voltage(V)200/220200/220200/220
Input capacity(kVA)153040
Bottom thickness of furnace(mm)350420420
Cooling systemCooling methodair-cooled
blower capacity(KVA)2.27.57.5
control panelblower power supply200/220V  50/60Hz
w1(mm)700(860)
Depth(mm)500(630)
H1(mm)1900
weight(kg)300
